wilba.tech | SALVATION



The SALVATION combines the soft and vibrant typing experience of an innovative leaf spring mounting system with a 60% tray case design.

This listing is for a full Salvation including a Hotswap PCB and FR4 plate



INNOVATION

The WT60-D WEIRDFLEX PCB is supported by silicon rubber standoffs attached to FR4 (fiberglass) leaf springs mounted to the case. Foam pads underneath the leaf springs provide vibration dampening and force modulation.

The internal brass weight attenuates resonance and improves typing sound.

The leaf springs provide exceptional flexibility, allowing the entire plate/PCB subassembly to yield under keystrokes and vibrate in isolation from the case. The result is a typing experience that is soft and vibrant across the whole keyboard.

CUSTOMIZATION

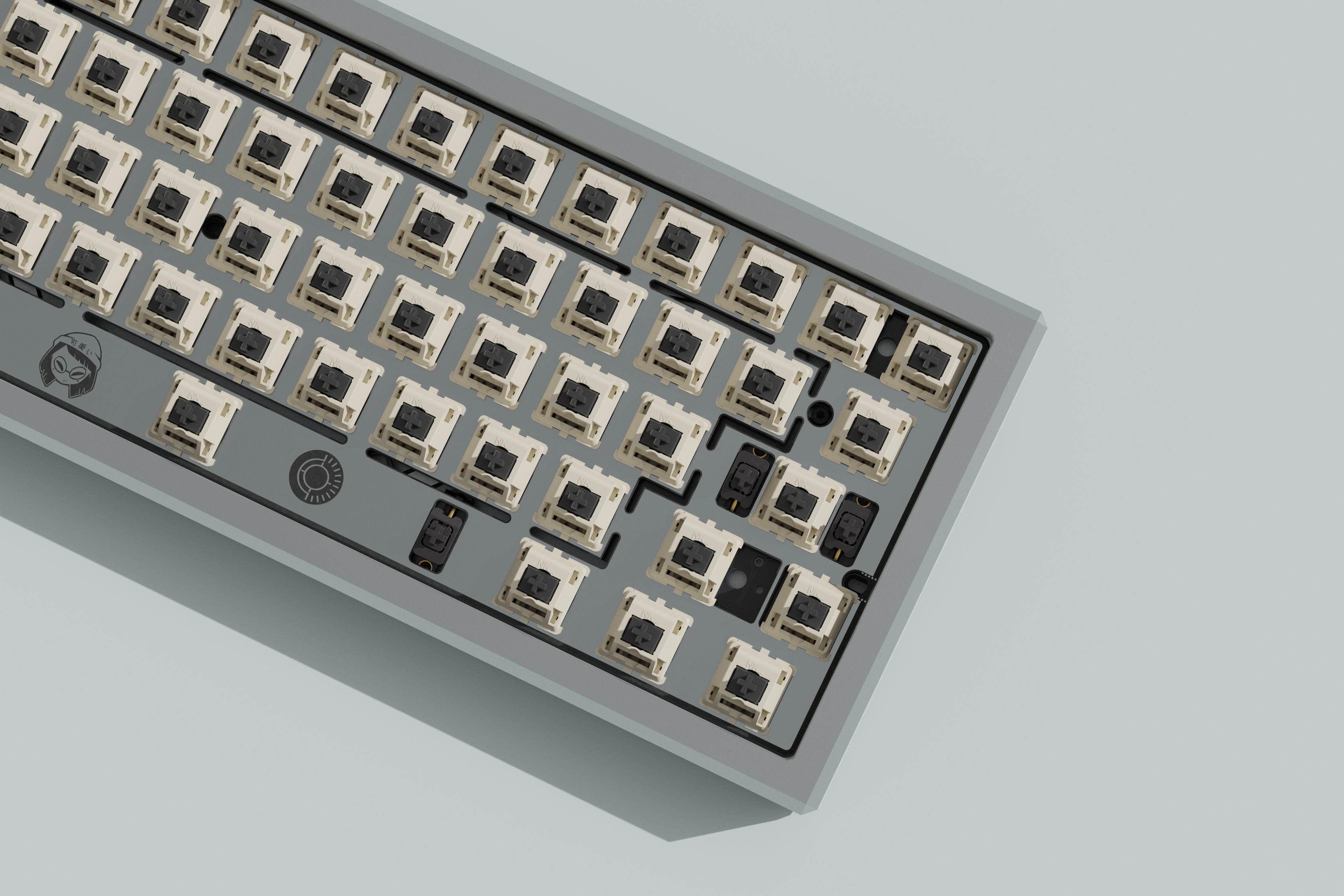

The SALVATION is designed for customization and experimentation. Build it with the stock FR4 plate, or use third-party 60% plates made of metal or plastic. Build it half-plate or plateless. Tweak the foam pad placement to make the leaf springs more or less flexible. Modify the stock FR4 plate to have slots that match the WT60-D WEIRDFLEX PCB, or into a half-plate design. Make your own leaf springs out of other materials.

FABRICATION

The SALVATION is expertly machined by Salvun.

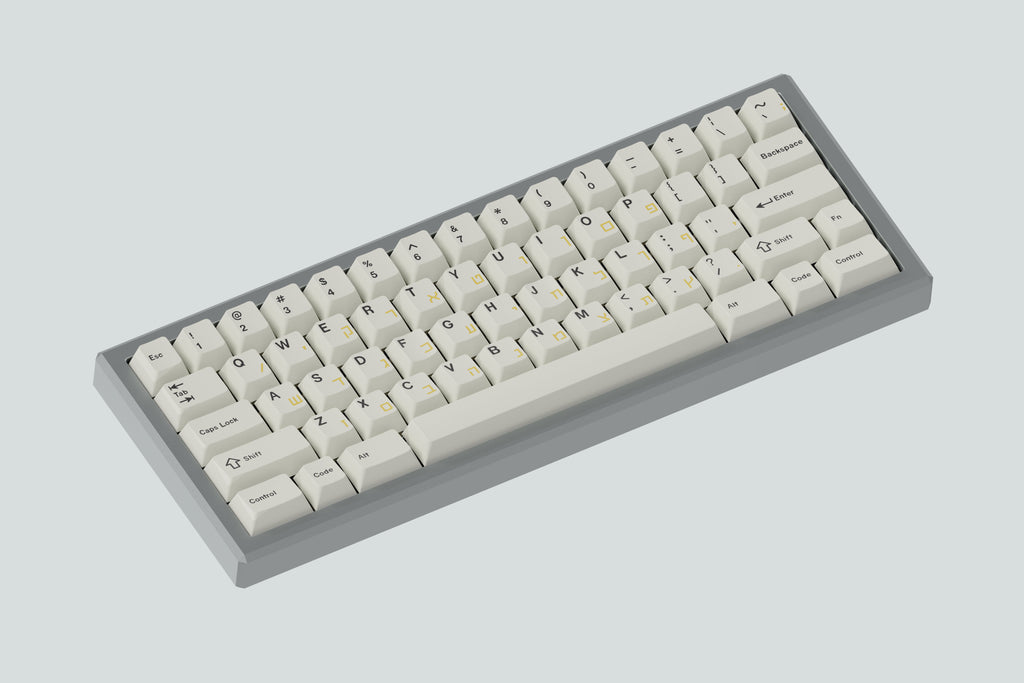

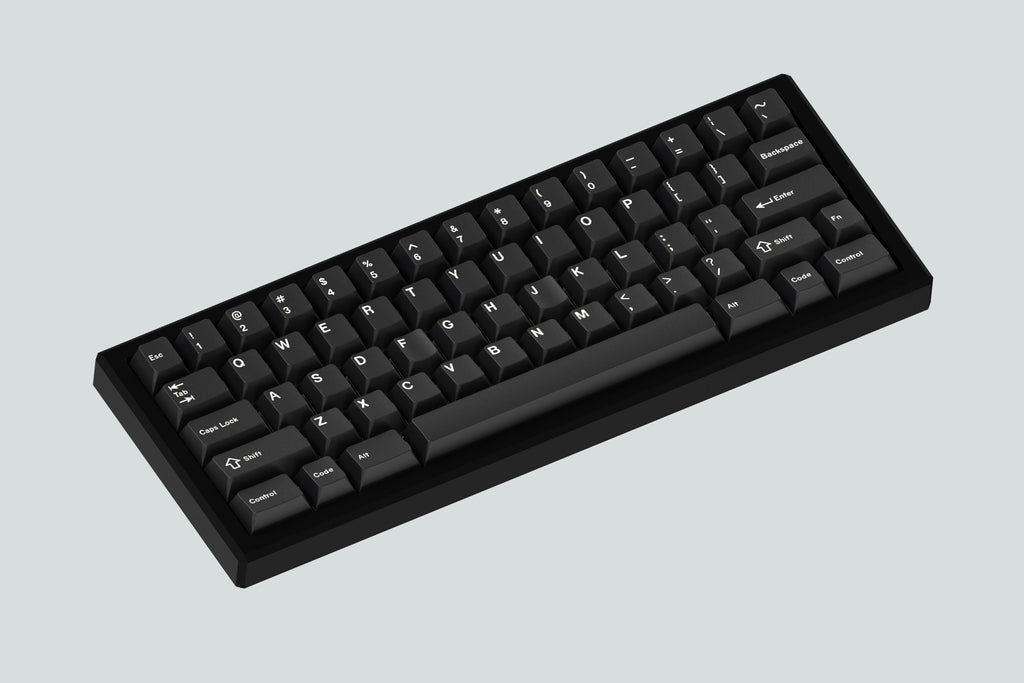

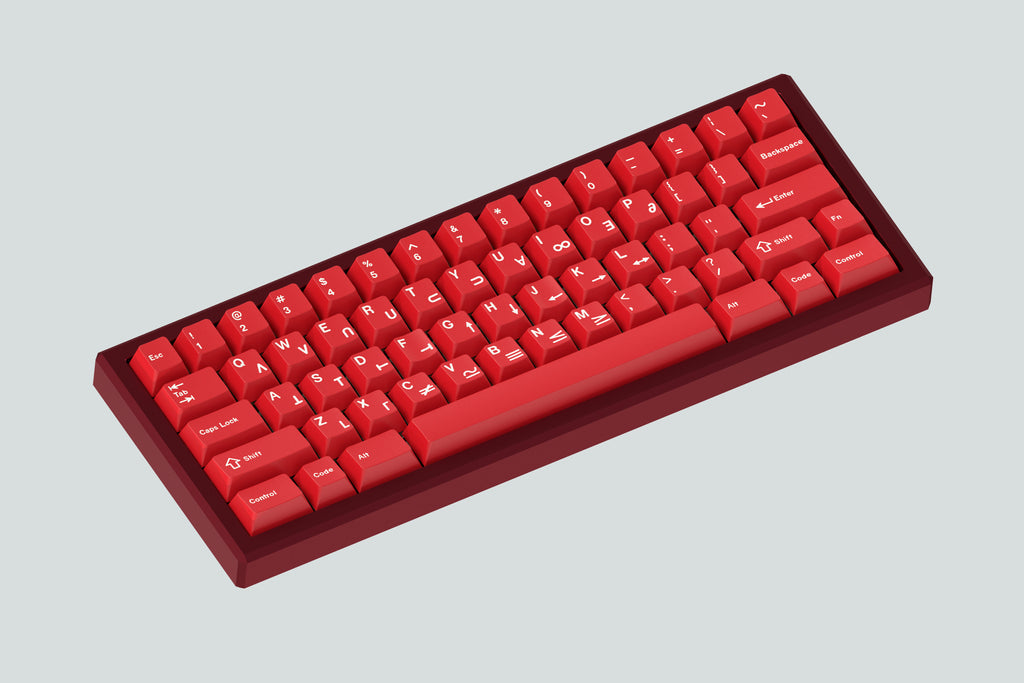

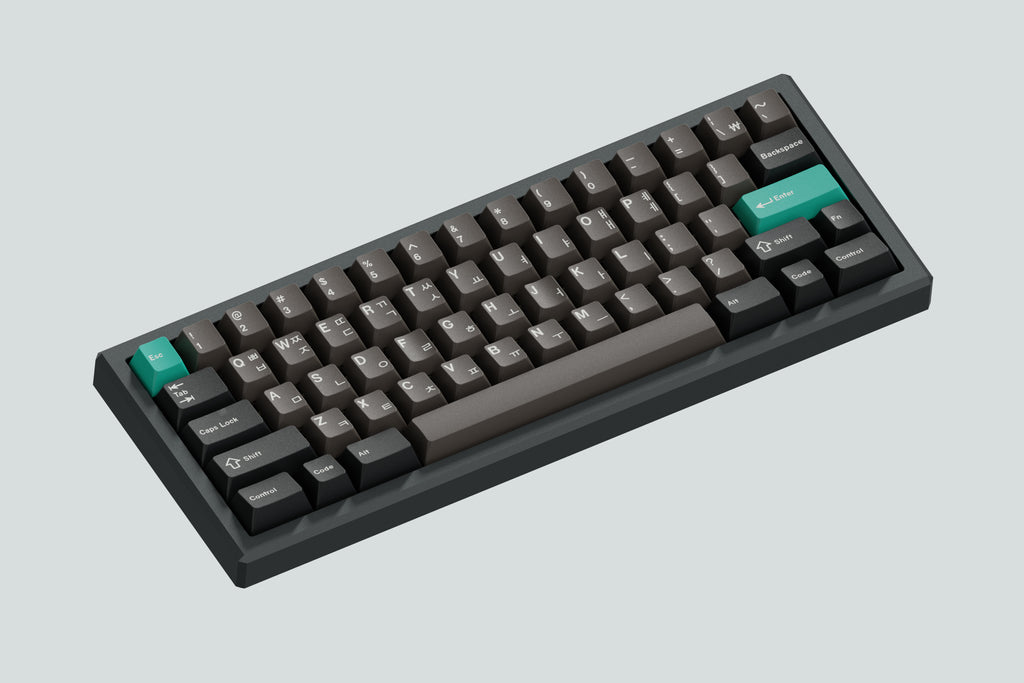

COLORIZATION

ACQUISITION

Unlimited Pre-order [This is not in stock and will ship at a later date]

4/4/2021 to 5/5/2021

from

Salvun (EU)295 EUR Inc. VAT
NovelKeys (US)  - 295 USD
Keyboard Treehouse (AU/NZ/OCE) - 325 USD Inc. GST
Zfrontier(CHINA) - 2285 CNY Inc. VAT/ship.
Ashkeebs (CANADA) - 370 CAD
Ilumkb (SEA) - 425 SGD Inc. GST


INCLUSION

1 x SALVATION Aluminium Case
1 x SALVATION Brass Internal Weight
1 x SALVATION FR4 Plate (ANSI or ISO)
1 x wilba.tech WT60-D WEIRDFLEX PCB (solderable) or
wilba.tech WT60-H1 AVOCADO PCB (hotswap)
4 x SKUF Silicone Rubber Feet
12 x SALVATION FR4 Leaf Springs
16 x Silicone Rubber Standoffs
16 x PORON Foam Pads
4 x M2x3mm threaded spacers (for PCB mount to leaf springs)
8 x M2x3.5mm screws (for PCB mount to leaf springs)
12 x M2x4mm screws (for leaf spring mount to case)
4 x M3x5mm screws (for internal weight mount to case)



SPECIFICATION

WEIGHT AND DIMENSIONS

Aluminium Case: 987 g (2.18 pound)
Brass Internal Weight: 208 g (0.46 pound)
Width: 304.80 mm (12.00 inch)
Depth: 115.31 mm (4.54 inch)

GENERAL

7.5° slope
Bead-blasted anodized aluminium case
Bead-blasted cerakoted brass internal weight
Nickel plated, copper clad FR4 (fibreglass) plate
QMK compatible, fully programmable with VIA configurator


NOTE: Keyboard Treehouse is only stocking ANSI Plates.
