Naevies EC Switches
$36.00 AUD $36.00 AUD
Tax included. Shipping calculated at checkout.
In stock
Description

Our new fully self-contained EC switches will make building a breeze

Gone are the days of hunting down rubber dome sheets, springs, sliders and stabilisers. No longer will you suffer topre pains where you've misaligned the rubber domes, or clipping your GMK keycaps to fit into stabilisers.

We've taken what we love from Topre and refined it into a Cherry MX compatible switch, using the 14x14mm footprint, it allows compatibility with MX stabilisers and MX keycaps. The weight of Naevies EC switches is 45g.

We currently support our Satellite keyboard with an upgrade kit. For other boards, you may need to get a new plate cut to support, or design a PCB to fit.


Specifications
  • MX Footprint
  • MX Stem compatibility
  • Electro-Capacitive
  • 45g Tactile Dome

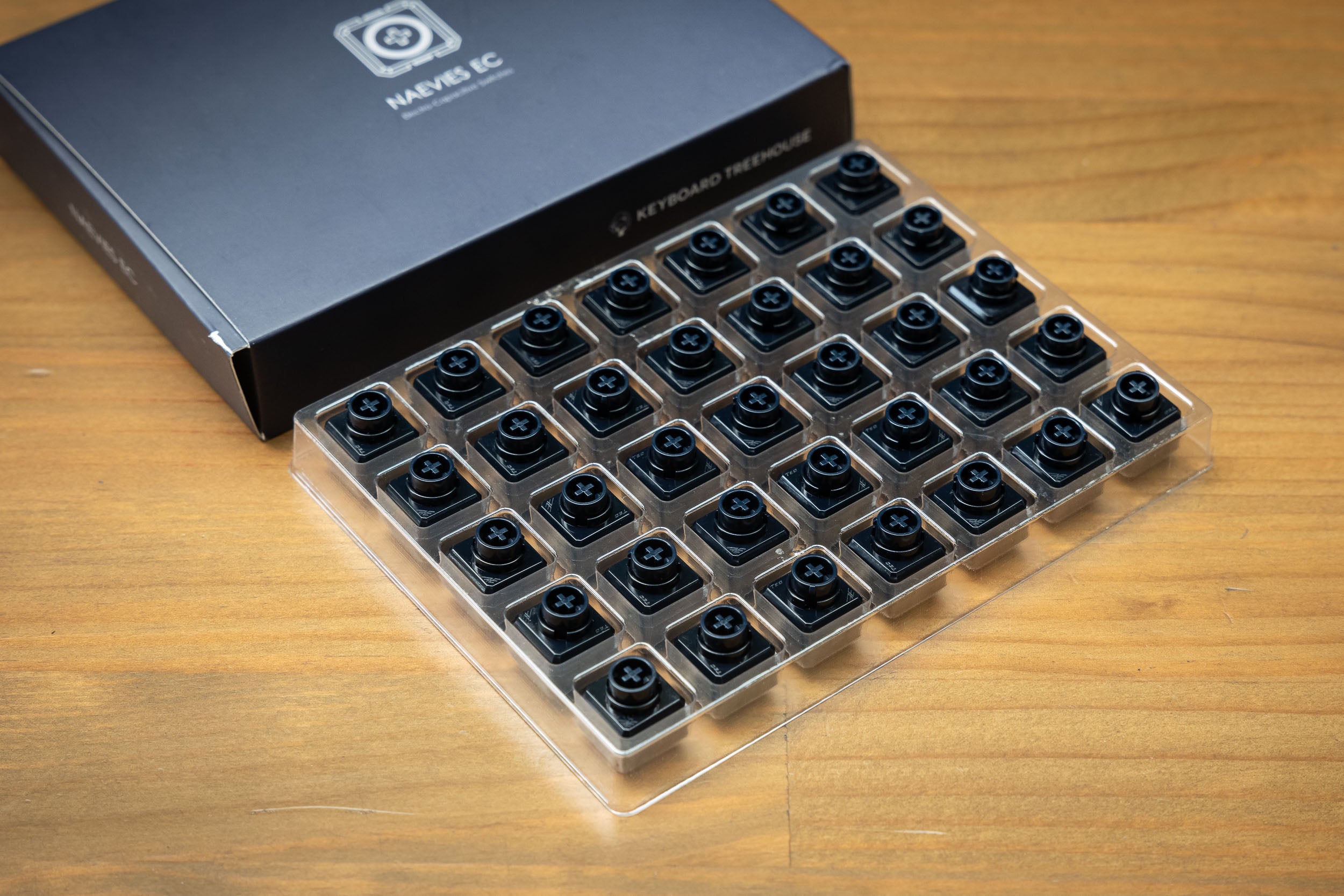

  • Pack of 35 Switches

Domes

Our Raeds HE and Naevies EC switches use a silicone dome that can be freely swapped around (with Naevies EC you will need to transfer the spring as well).

Visual dome swapping guide here.

We have newly launched 60g Linear Domes for purchase that can be swapped into both Raeds HE and Naevies EC switches.

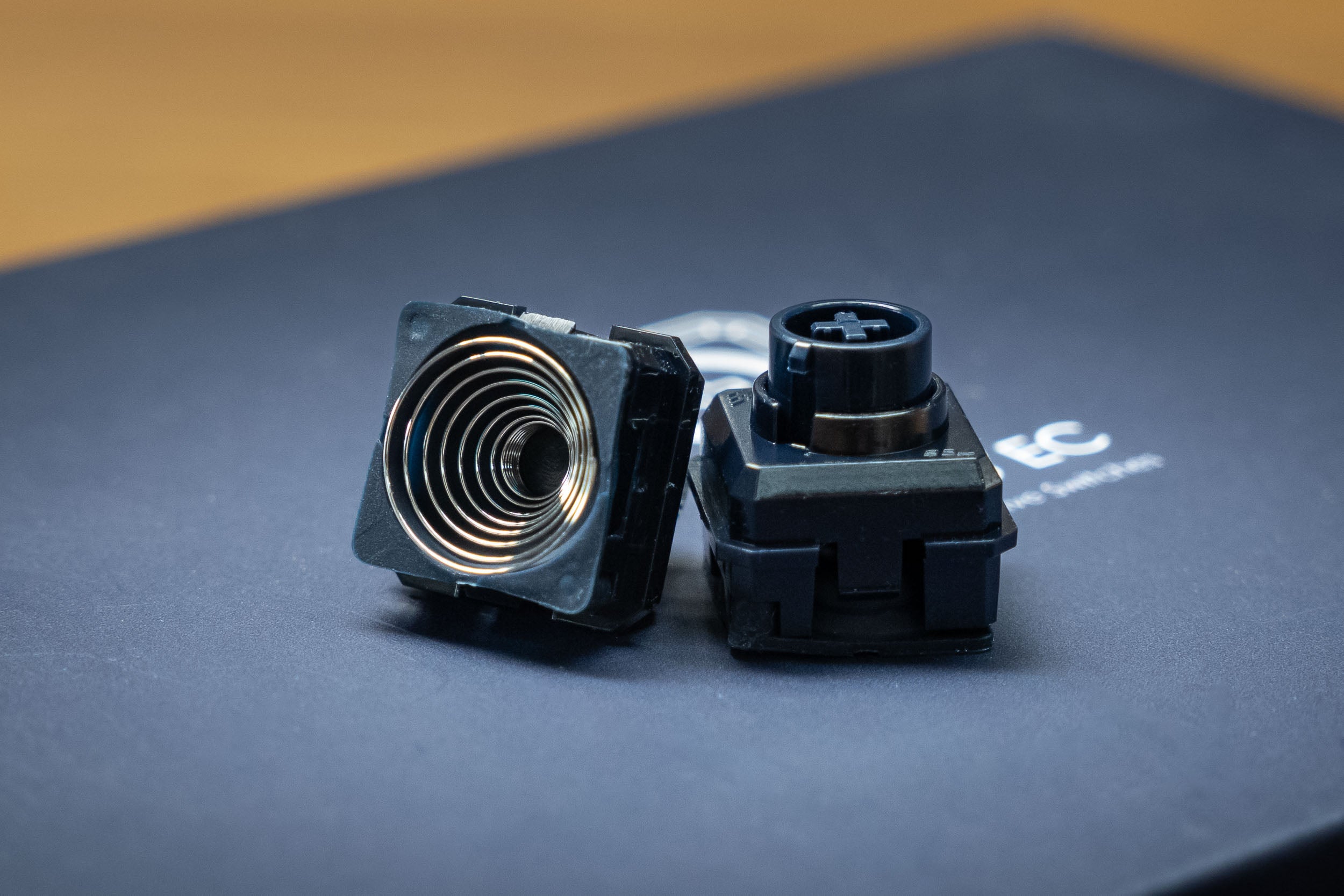

On Naevies EC switches, there is also a small piece of clear film that sits on top of the spring. This is help the spring stay in place. You can transfer this over but it will not affect the switch if you leave it out.


Updated Design
As of mid October 2025, our Naevies EC switches have had an update to the mould.

  1. The system used to clip the switches into the plate has been improved to reduce or eliminate switches from popping out. Taller keycaps like SA may exacerbate the issue.
  2. Certain keycaps were also reported to hit the switch housing so the stem was limited from depressing too far.
The same changes will be coming soon to our Raeds HE switches lineup as well.

To identify which version you have, refer to the barcode on the back of the box.

The updated switches will have the correct AESWITCH-EC barcode and the first run had a misprint saying AESWITCH-HE.


Compatibility Notes
Domes: these switches are not compatible with Topre or other rubber dome sheets. Naevies use a custom rubber dome that fits into the MX footprint, and is aligned into our switches using corner pillars.

PCBSs: they should work with existing Topre/EC PCBs, but it is not a drop in replacement - you will need to do your own testing, and will need to be able to calibrate your EC PCB.

Plates: Topre plates are unique in that it is usually an injected plastic frame to support the sliders. Naevies use the MX footprint and you are likely to be familiar with this style of plate. Please note that we have specific screw/standoff placement, to ensure a fight and rigid fit that is required for EC PCBs.

Constellation: our current iteration of EC PCB is not compatible with the Constellation keyboard case due to o-ring pillars being in the way, but we are looking into solving this.


Existing Satellite Users

You will need to purchase an EC Upgrade Kit that contains the PCB, plate and 2 packs (70) switches. You will also need another set of Staebies or other stabilisers.


Partner Vendors

You can find these at the following stores:



Reviews

Check out ThereminGoat's in-depth switch review here.



  • pack quantity
    35 Switches
  • switch details
    • 14x14mm (Cherry MX Footprint)
    • MX keycap support
    • 45g tactile dome
  • material
    Nylon
  • design by
    AEBoards
  • manufacturing country
    China
