Constellation PC EC Full Kit

Constellation EC 'Soft Launch'

We are launching the Constellation EC as a 'soft launch' while we work on filling out the listing with more details, photos and preparing marketing materials. Additional Constellation colours will also be coming.

Please have a look at the links below to find what you need to complete your EC build.

If you have any questions, please get in contact before purchasing.

Constellation Full Kit Discount

There will be a 15% discount ($123 off) for 1 week only - ending Sunday 6th April at 11:59pm sydney time (AEST time zone).

Constellation EC Kits

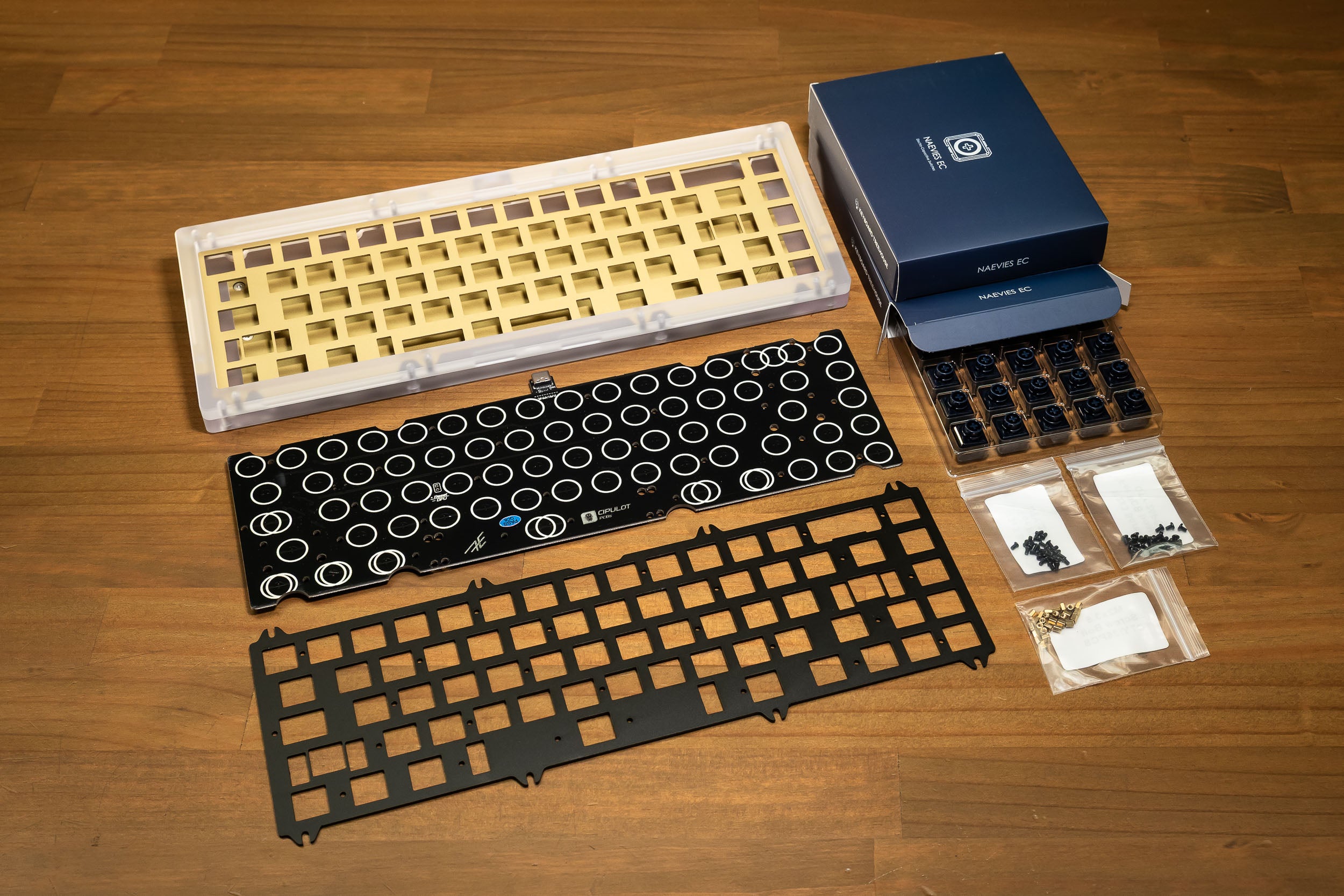

Full Kit: The Constellation EC Full Kit contains everything you need to build a Constellation EC.

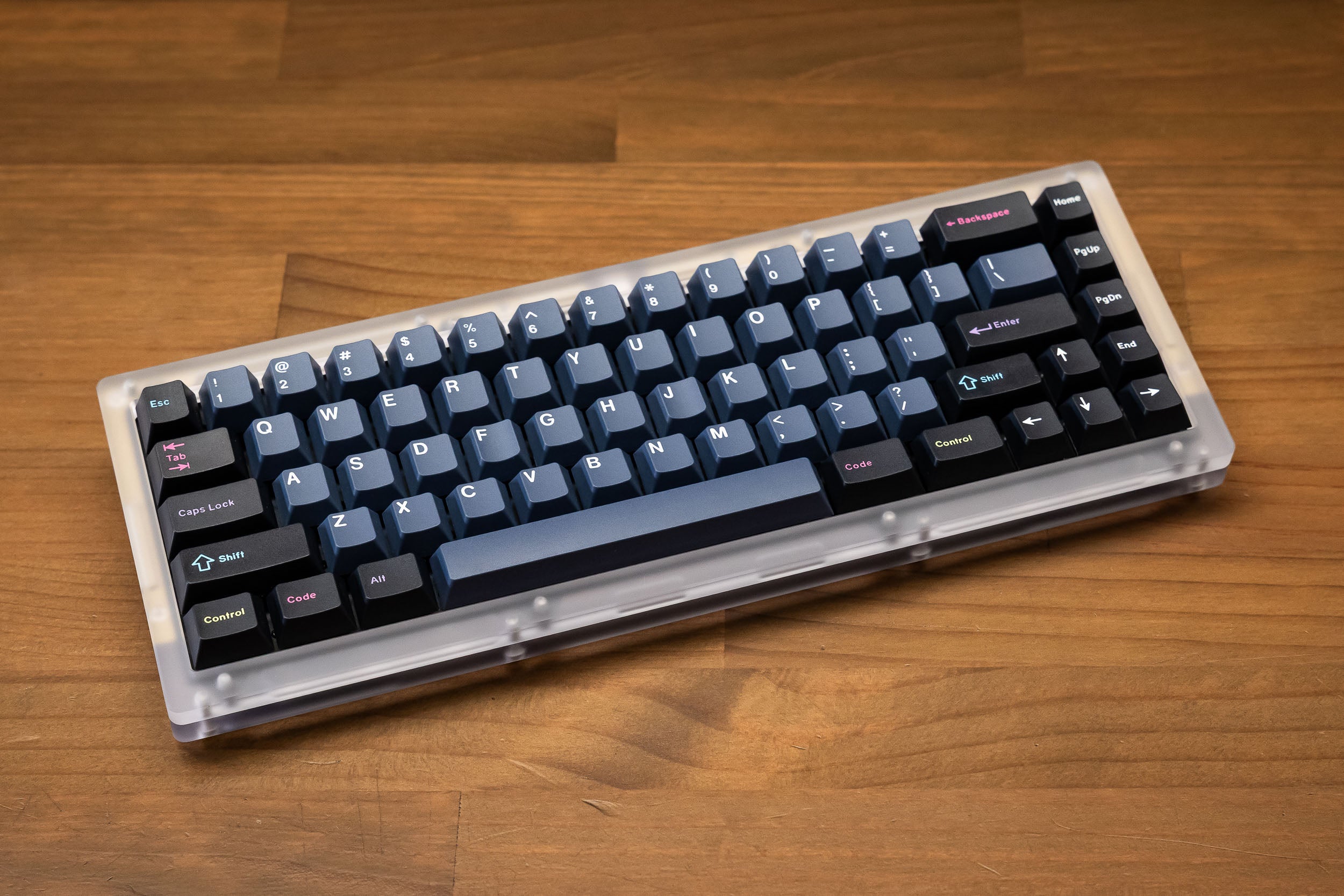

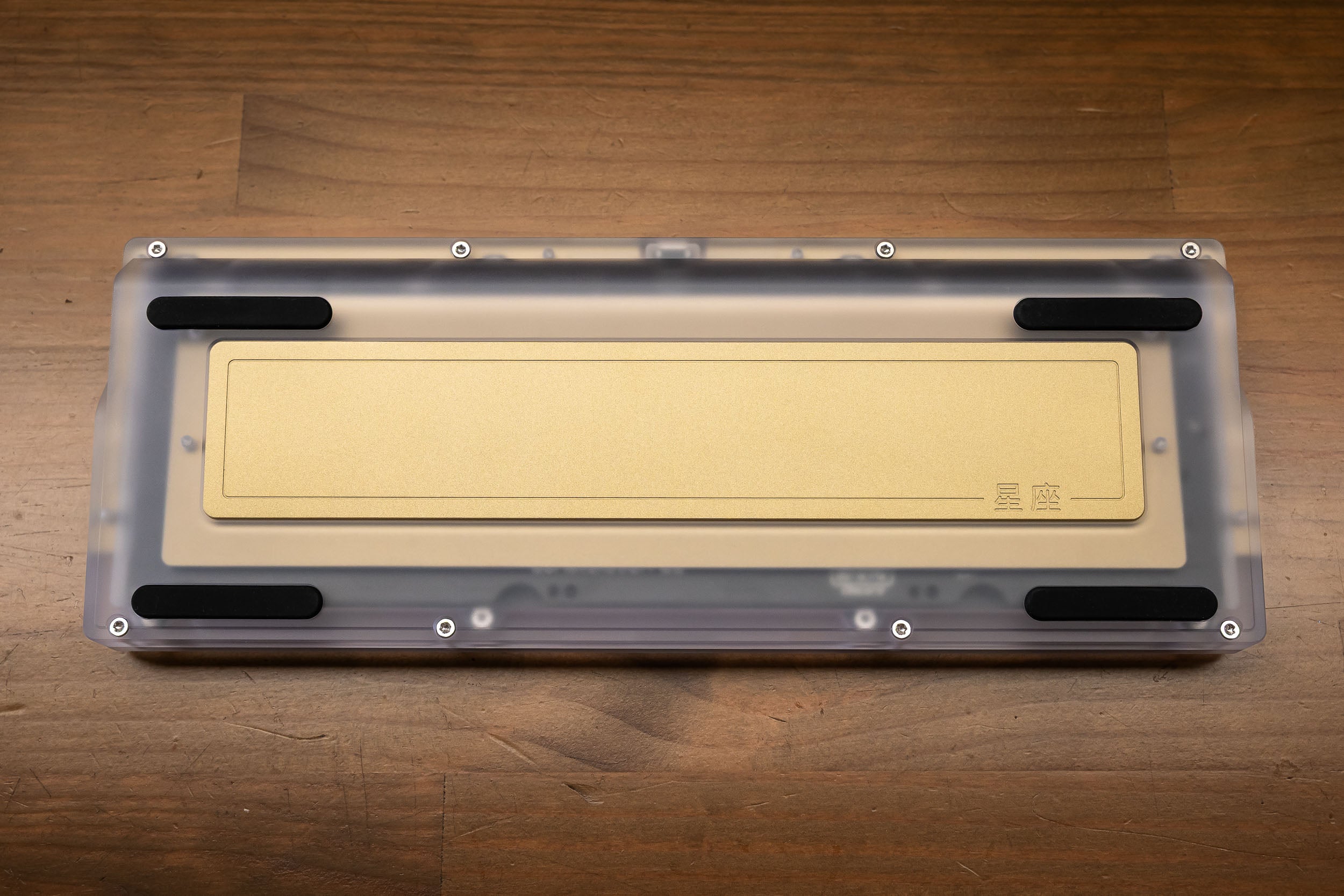

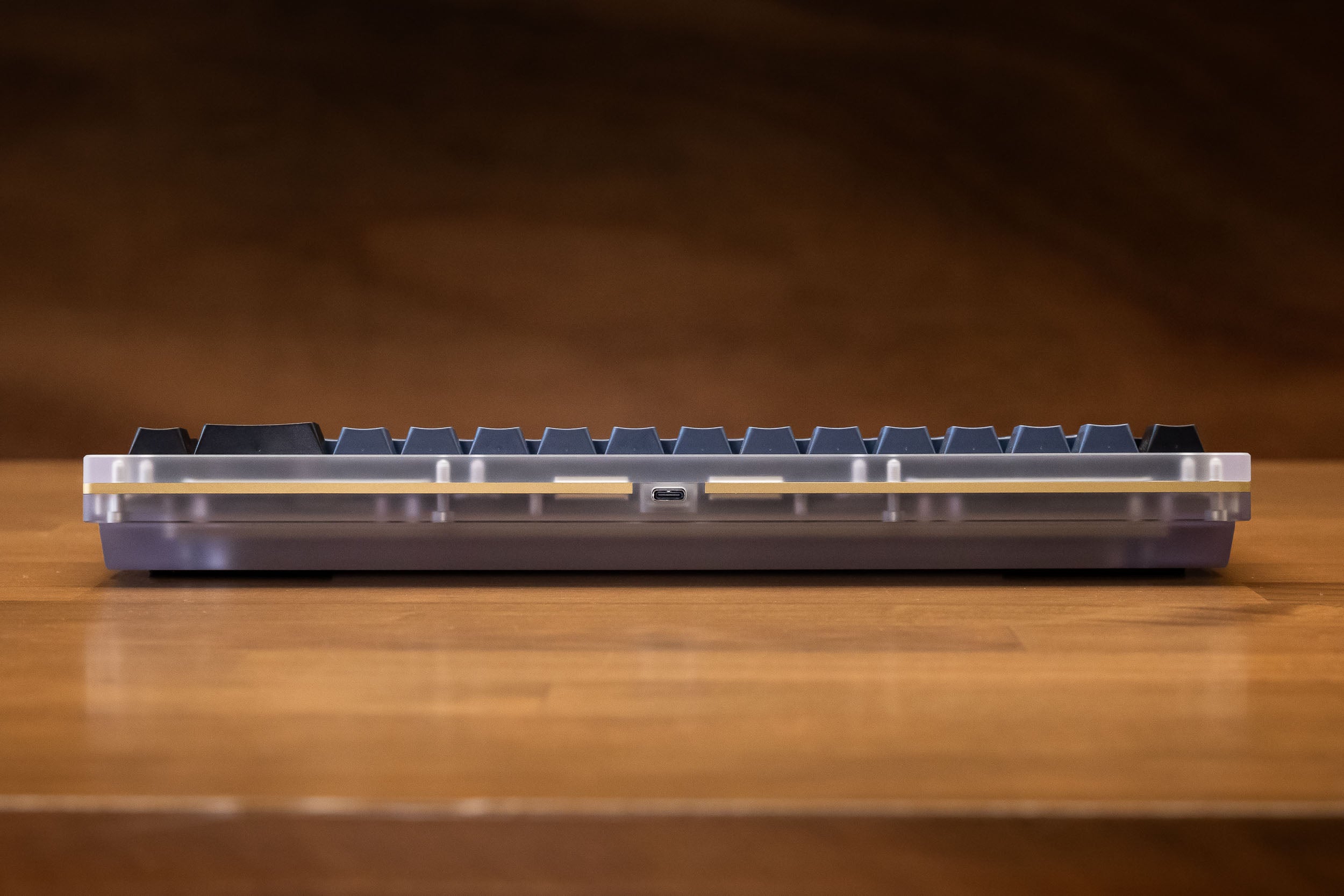

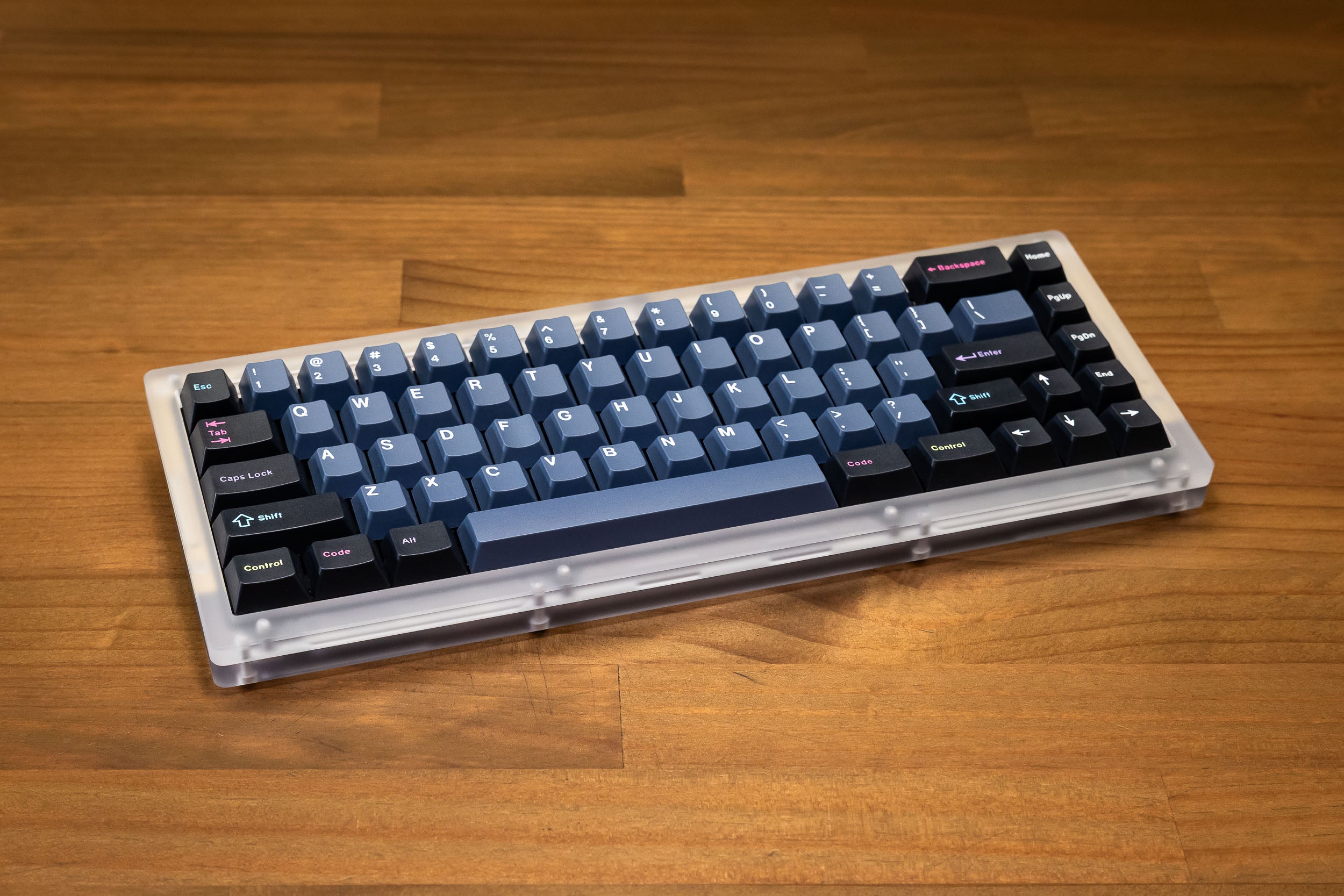

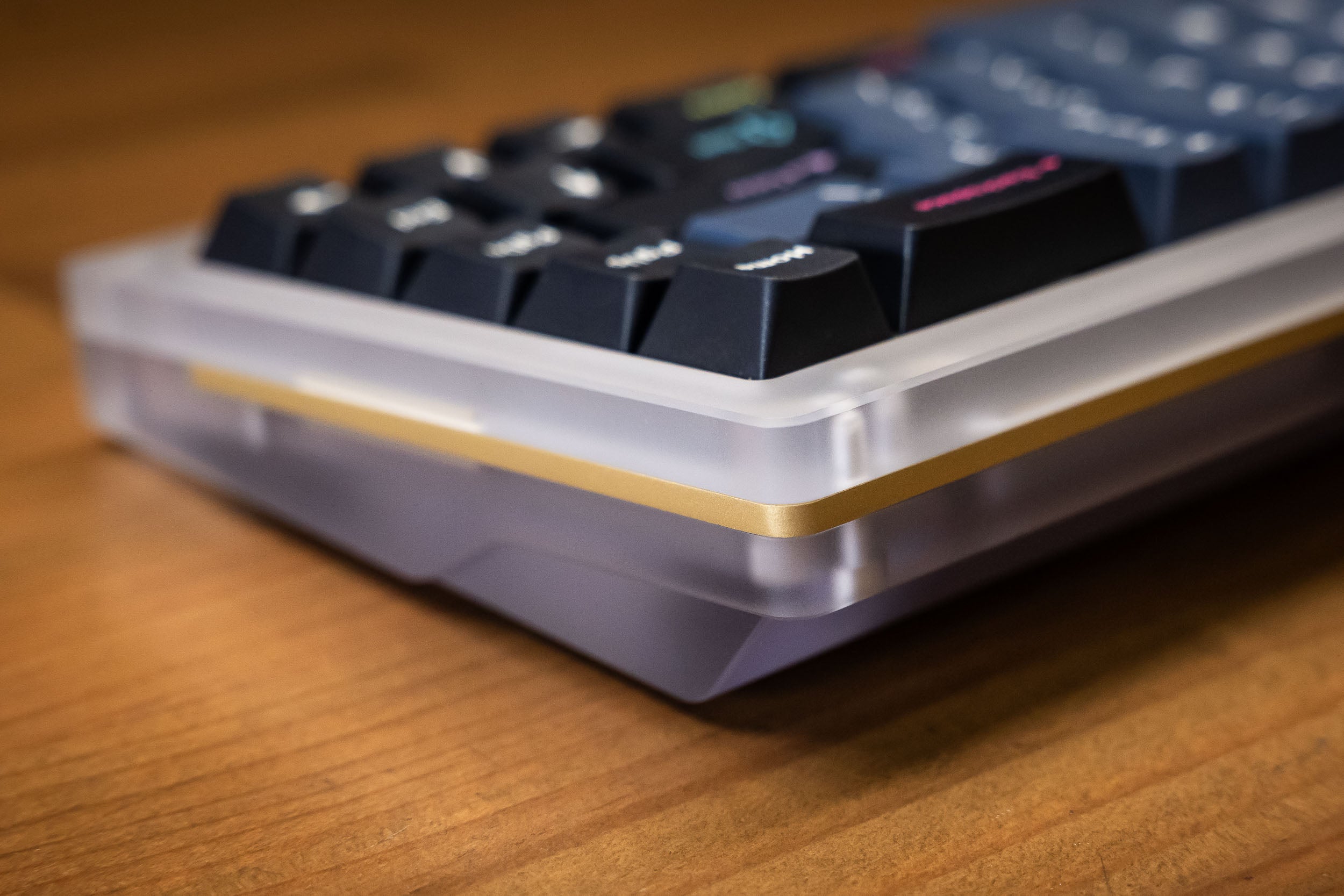

PC (Polycarbonate) Full Kit: The Constellation PC EC Full Kit contains everything you need to build a Constellation PC EC.

Upgrade Kit: The Constellation EC Upgrade Kit is for those who own a Constellation and wish to drop in an EC build. This kit contains the PCB, plate and 2 packs of switches.

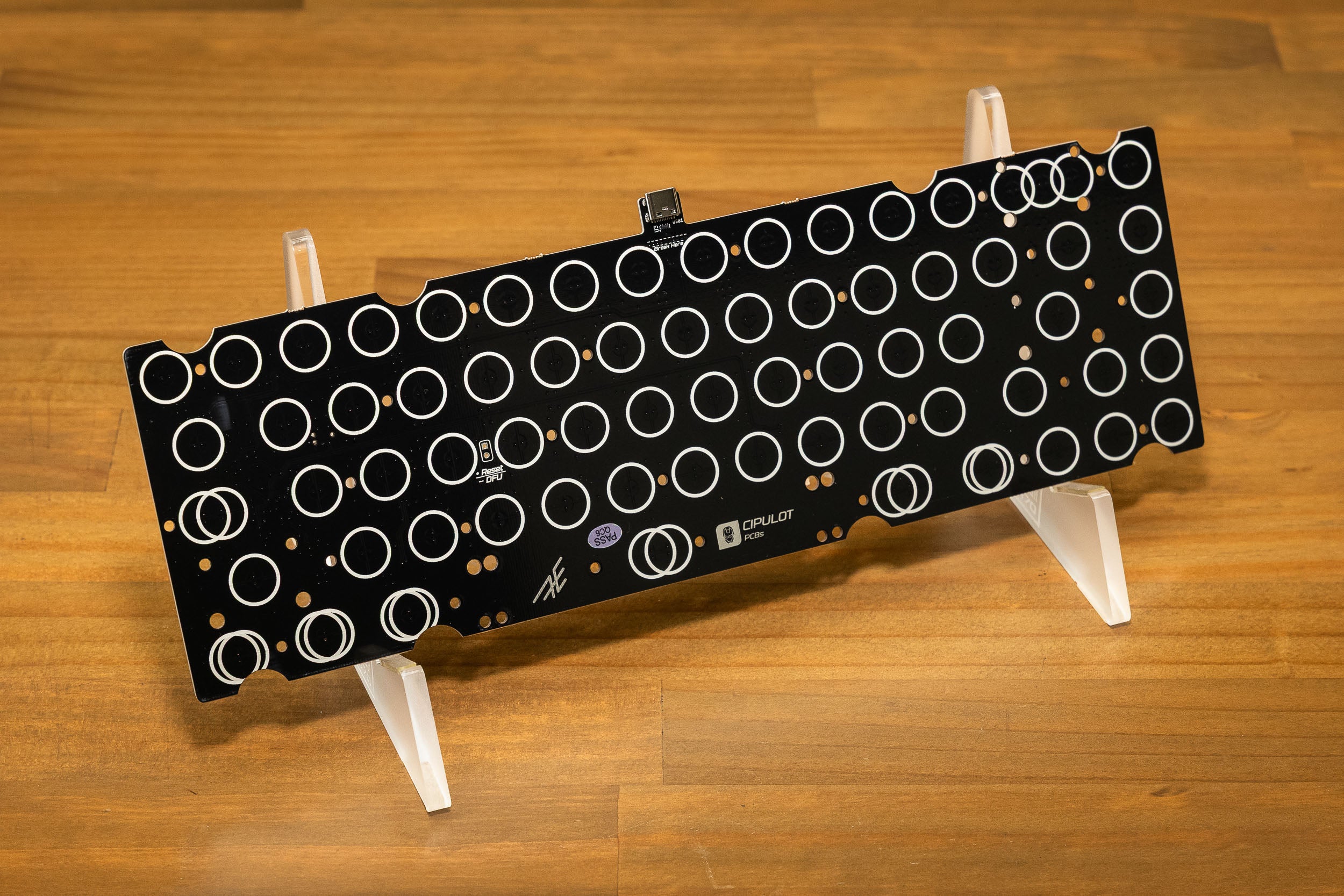

If you already have a Constellation EC PCB

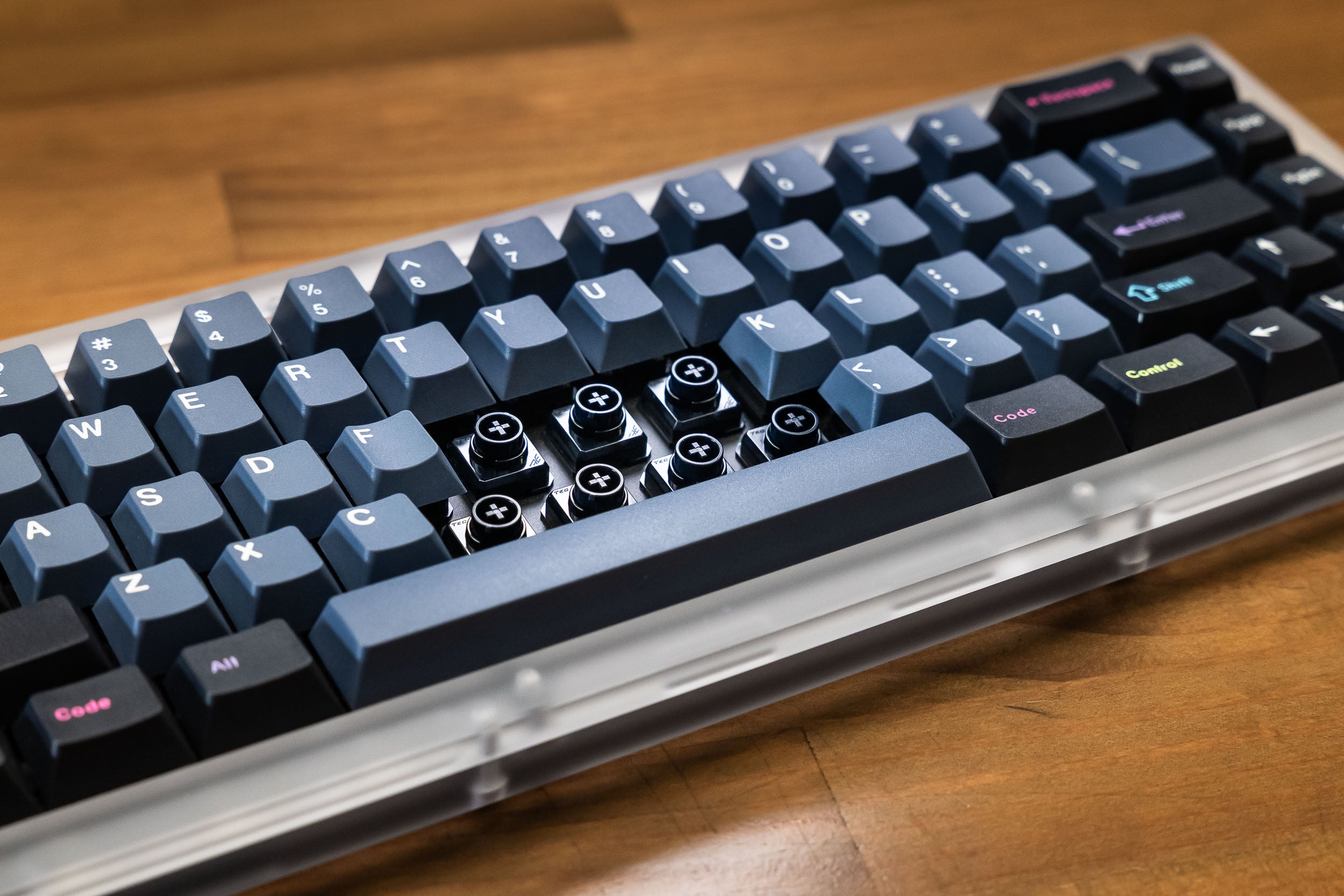

Switches: You will need 2 packs of Naevies EC switches

Stabilisers: You will need 1 set of Staebies or other stabilisers.

Note: if you own a Satellite EC PCB, it will not be compatible with Constellation cases.

Build Instructions

See Lightning's comprehensive build guide on his website.

No soldering is required, only a screwdriver. Included are 2 bags of screws (one set for PCB, one set for plate) and 1 bag of brass standoffs.

1. Install stabilisers onto the EC PCB - ensure you have the correct plate for a 6.25u or 7u layout.
2. Install standoffs to the PCB using PCB screws.

3. Place the plate on the stand offs, and screw in with plate screws.

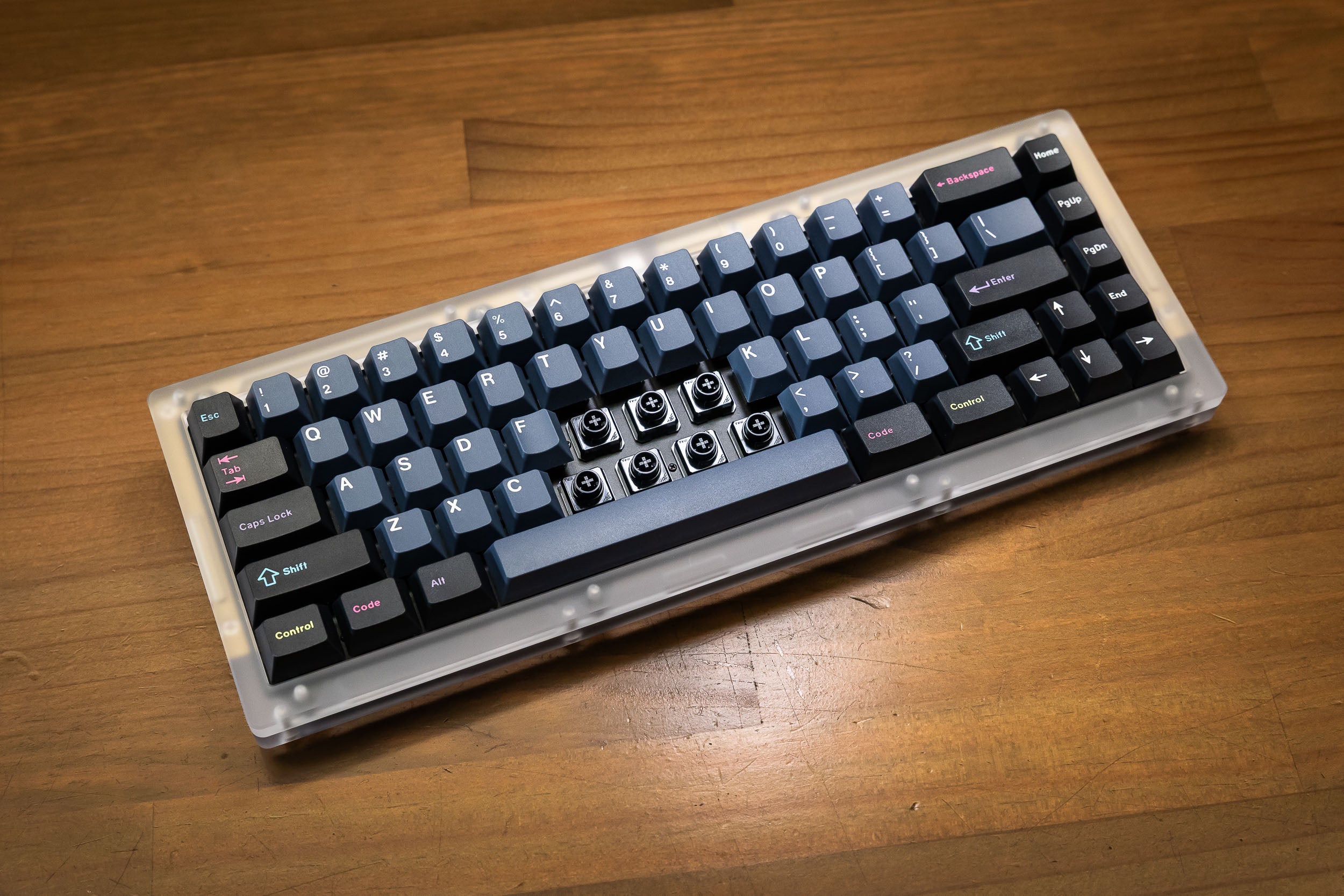

4. Insert Naevies EC switches into the plate.
5. Calibrate the PCB with VIA (caniusevia.com). Here is a guide from the designer Cipulot - https://youtu.be/Q4fDkv0Z1bM
